DEMO in Store.
New stock due Nov-Dec 2021

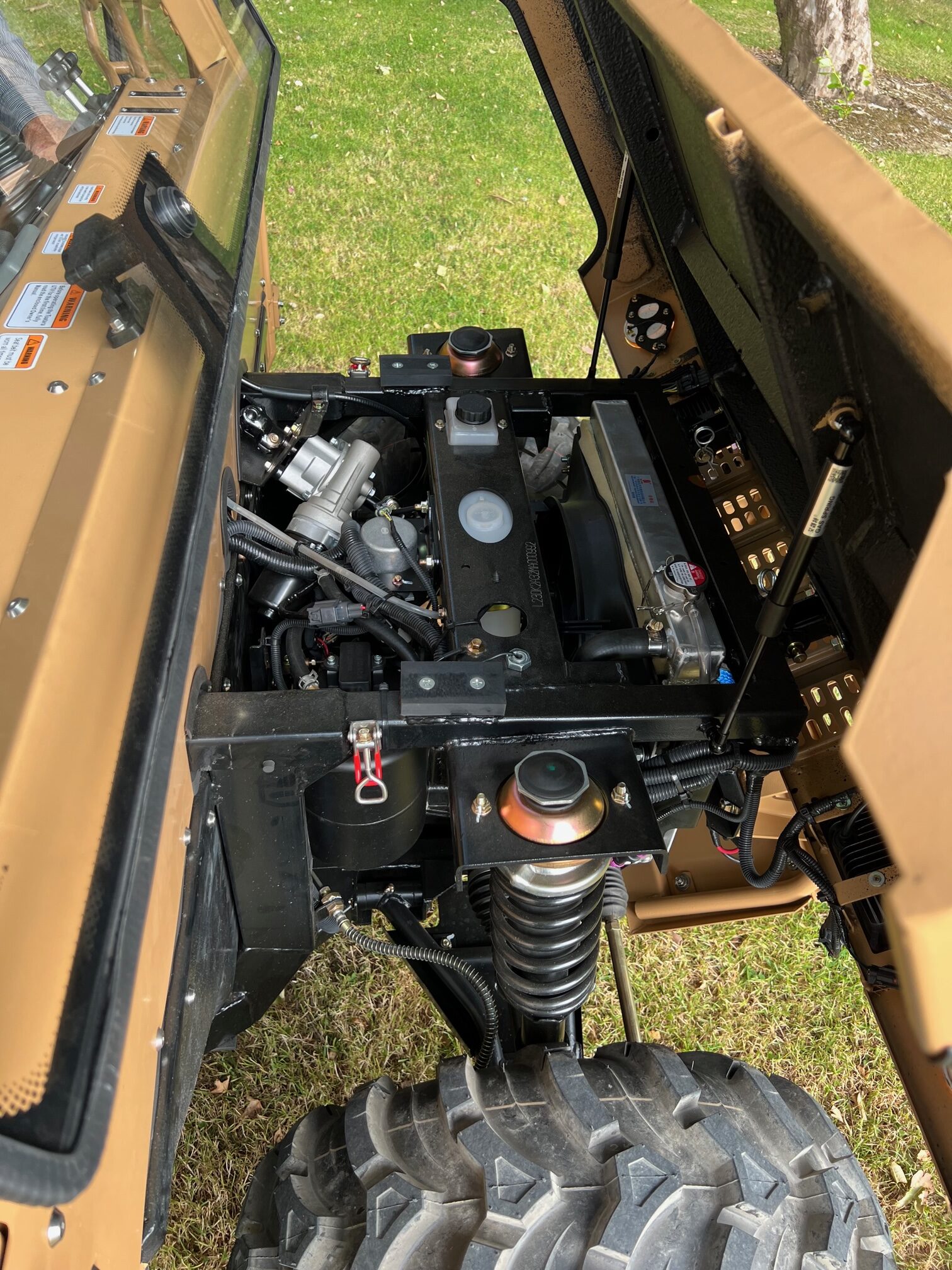

MOTOR STRUCTURE
Type: ACPM (Permanent Magnet).
Cooling Method: Water.
Battery Voltage 108V
Rated Power: 15kW.
Peak Power: 30KW.
Rated Speed: 4000 rpm.
Max, Speed. 5500 rpm.
Rated Torque: 35.8 N.M.
Max. Torque: 130 N.M.
Suspension
Front Suspension: Independent single A-arm with McPherson strut.
Rear Suspension: Independent Dual A-arm with double coil springs.
Tyres: CST high grip.
Brakes: Hydraulic disc with regenerative braking.
All steel ladder design.
Anti-Corrosion treatment: Electrophoresis.
Water Protection
IP67 Insulation Grade:
H. Rated Current.
150A Peak Current: 400A
Vehicle Dimensions & Weight.
Overall Length: 3580mm.
Ground Clearance: 310mm
Cargo Deck: 1600cm x 193cm x 30cm.
Weight: 1100kg
BATTERY
Battery Range: Up to 220kms on a single charge.
Battery Type: Lithium Iron Phosphate.
Charging Time: 5-7 hours.
Capacity: 13kWh or 26kWh.
Weight: 102KG/13kWh; 204KG/26kWh.
