Introducing the new addition to our ATLAS-E range of
Electric Vehicles

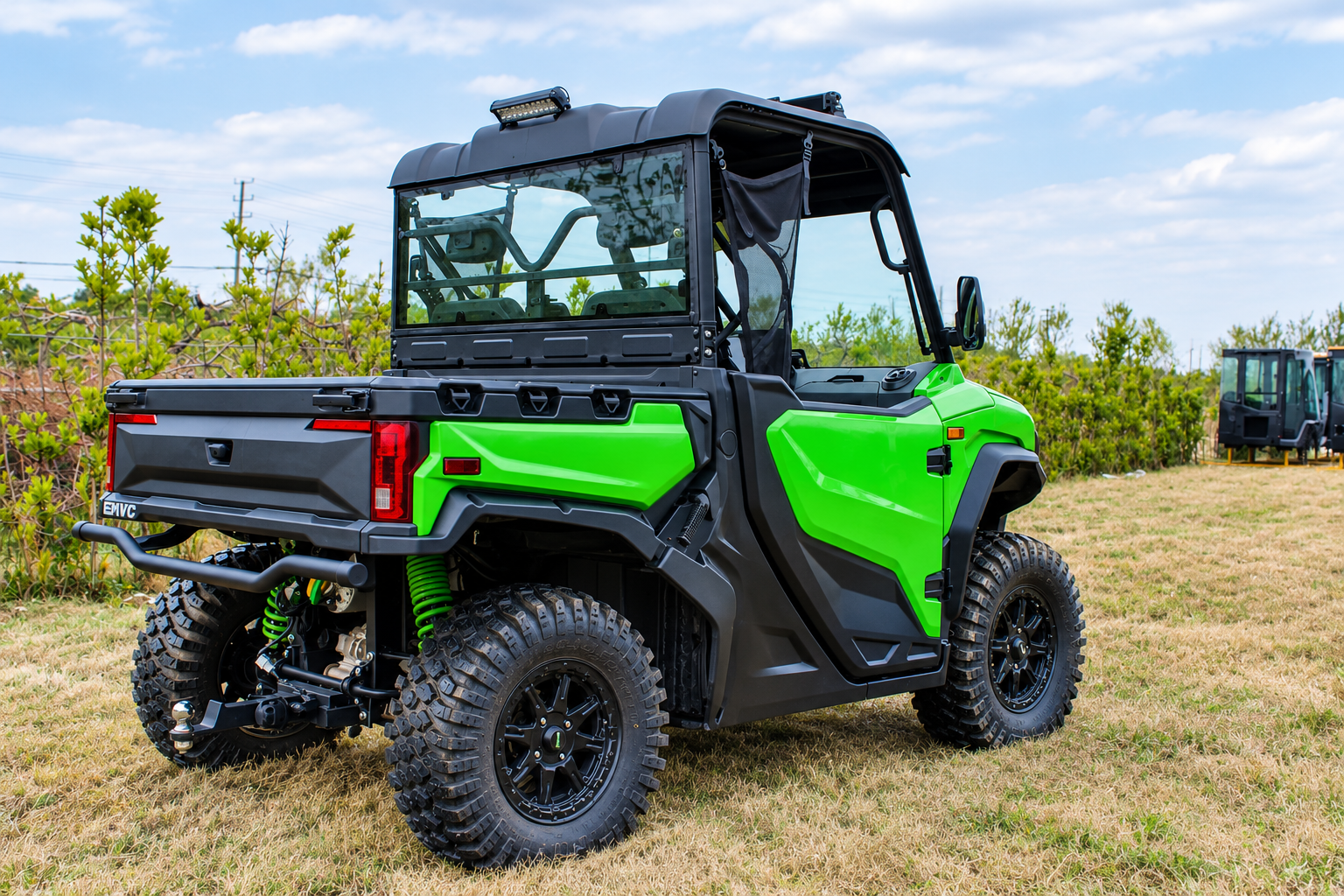

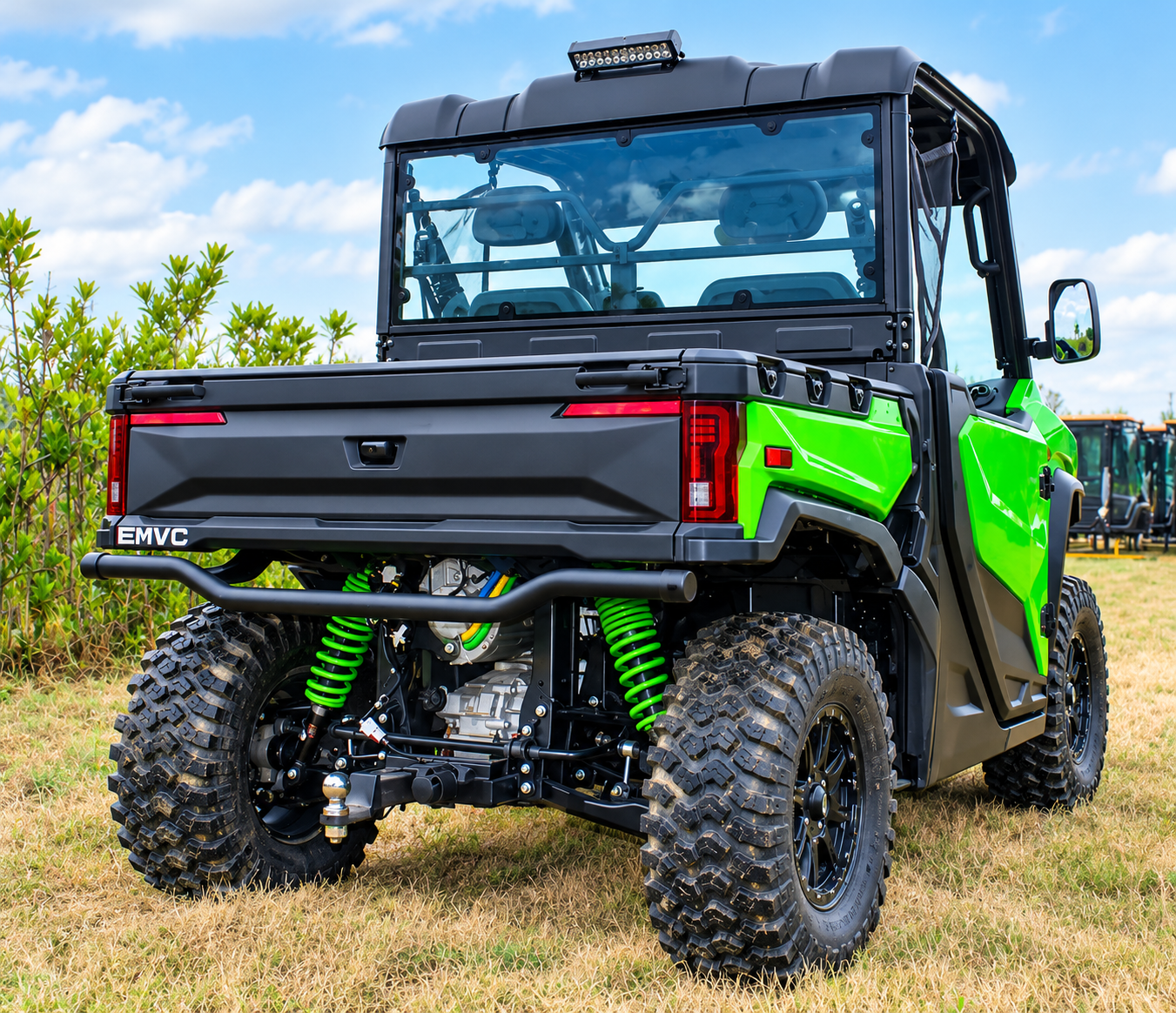

ATLAS-E All Electric Single Row UTV
Following the success of our 6-Seater ATLAS-E Crewcab, we’re excited to announce the next addition to our electric vehicle range — the ATLAS-E 4×4 Single-Row UTV.
We’ve always believed there was a gap in the New Zealand market for a true electric workhorse — a 4×4 UTV that combines serious power, greater range and rugged capability to handle the diverse conditions and terrain found throughout New Zealand.
So, we went looking for it.
Our search led us to one of the world’s largest and most experienced electric UTV manufacturers, supplying vehicles across the USA, Europe, Brazil and many other international markets, including vehicles supplied to the US Army.
What really impressed us was their willingness to work with us and give us greater ongoing control over the product, allowing us to develop an electric UTV specifically suited to the New Zealand market and our customers’ needs.
The result is something we’re extremely proud of.
Our next level of electric UTV has arrived.
More power. More range. More capability. Zero emissions.
The ATLAS-E Single-Row UTV 4×4 is built to work — quietly, efficiently and confidently, wherever the job takes you.
This isn’t just another electric UTV. It’s the electric workhorse we’ve been looking for.
Please ring or fill out the ‘Enquiry Form’ for more details including specifications, price and availability as the first shipment is nearly sold out.
Specifications:
Single Row – 2 Door, 3 seats
Energy Type: Pure Electric
Motor Type: Permanent Magnet Synchronous – Single Rear mounted
Power: 10kw (nominal) 20kw (peak)
Battery Type: Lithium Iron Phosphate
Battery Size: 16.928 kWh
Voltage: 72v
Charging Time: 6.5 Hours with 3kW Charger
Range: 90km (*Range depends on weight, terrain, wind, driving style and speed)
Speed: 50kph
Drive Mode: Std Rear 2WD Switchable to 4WD and with Diff Lock
Brakes: Dual Hydraulic F&R Ventilated Discs
Parking Brake: Electronic ‘P’, Locks up Gearbox
Electronic Braking System (EBS): Manages Downhill Braking – Blends friction brakes with continuous/endurance auxiliary brakes to maintain a safe controlled speed without overheating the system. EBS incorporates the regenerative braking system.
Anti-Rollback
Suspension: Front & Rear Double Wishbone Independent
Power Steering
Steering Wheel Adjustment
Turing Radius: 4.55m
Gradient Climbing Ability: 25%
Wheelbase: 1950mm
F/R Track Width: 1260mm
Exterior Dimensions:
2970 (L)*1570 (W)*1980 (H) (mm)
Tyres: 27”
Rear Tow Ball
Minimum Ground Clearance: 280mm
Wading Depth: Under 1m
Curb Weight with Battery: 960kg
Maximum Load: 1420kg
Trunk Volume: 310L
Cargo Bed Load: 260kg
Winch – Switch Controlled: 3500lbs
One Button Start: Yes
Rotary Gear Selector: P/D/R/N
Reversing Camera: With side and front camera’s and reversing alarm
Wiper and Washer
Front Windscreen: Tempered Glass
Mirror: 2x Exterior and 1x Interior

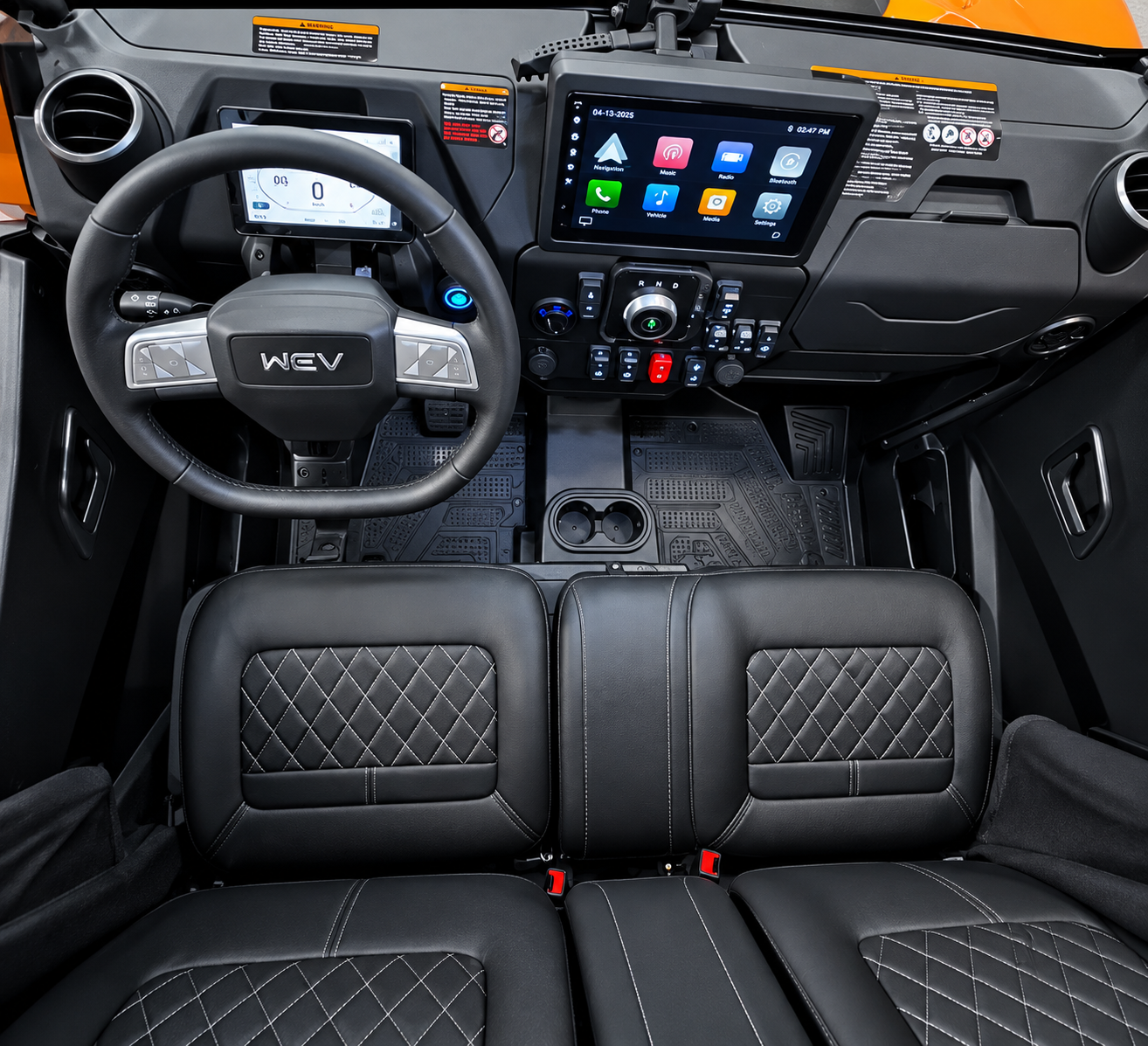

7” LCD Instrument Screen: Speed, Power, Battery, Range etc.
10.1” LCD Infotainment Screen: Audio, Bluetooth, Phone Connectivity, Screen Mirroring, etc
Exterior Lighting: Front, Rear, Brake, Reflector, Low/High Beam, LED Running Lights, Warning, Turn Signals, Hazard, Reverse, Fog, Roof front and Rear Light
High Voltage Emergency Stop Switch
Seat Belt Reminder
Driver’s seat adjustable
2 Cup Holders
USB – Dual Port – Std and USB-C
12v Power Outlet
Rear Cargo Bed Power Plug
Rear Cargo Bed Electric Tip
Tools: Jack, Tyre and Allen Wrench
Waterproof Rating – IP67
Corrosion Protection – 72h Salt Spray Test
