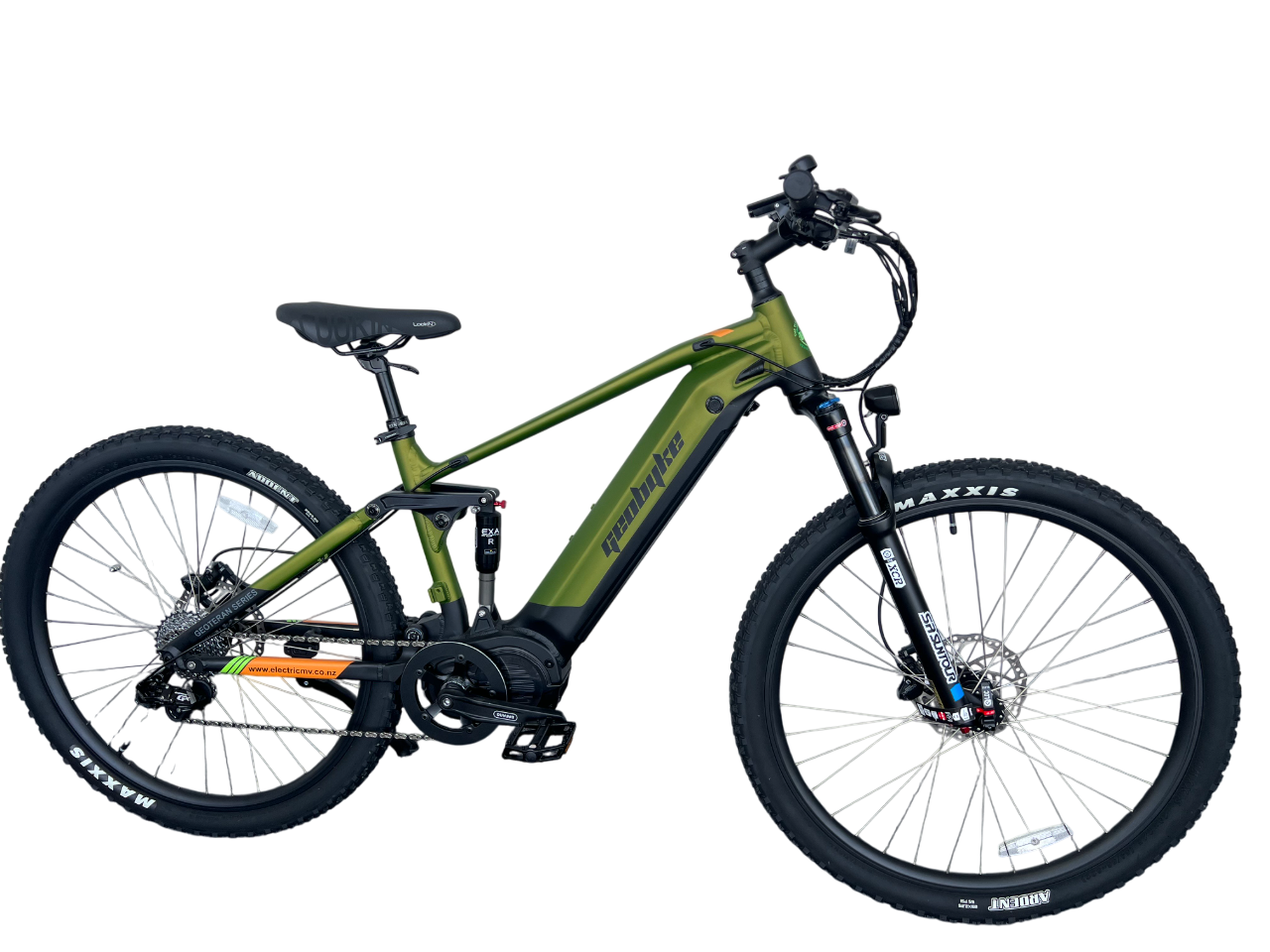

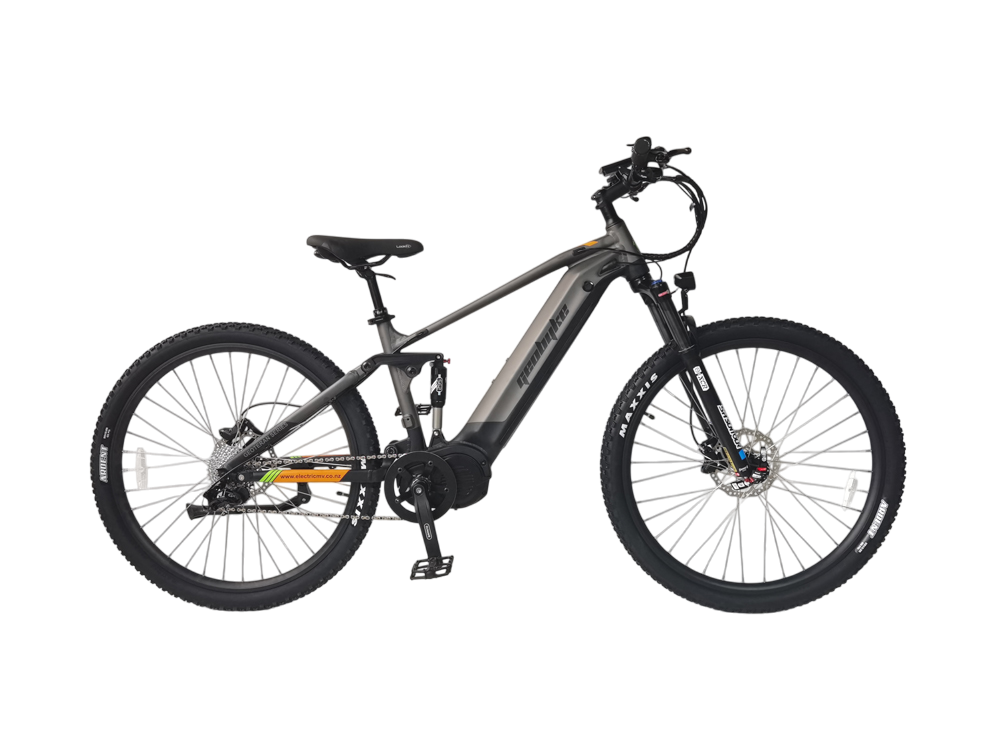

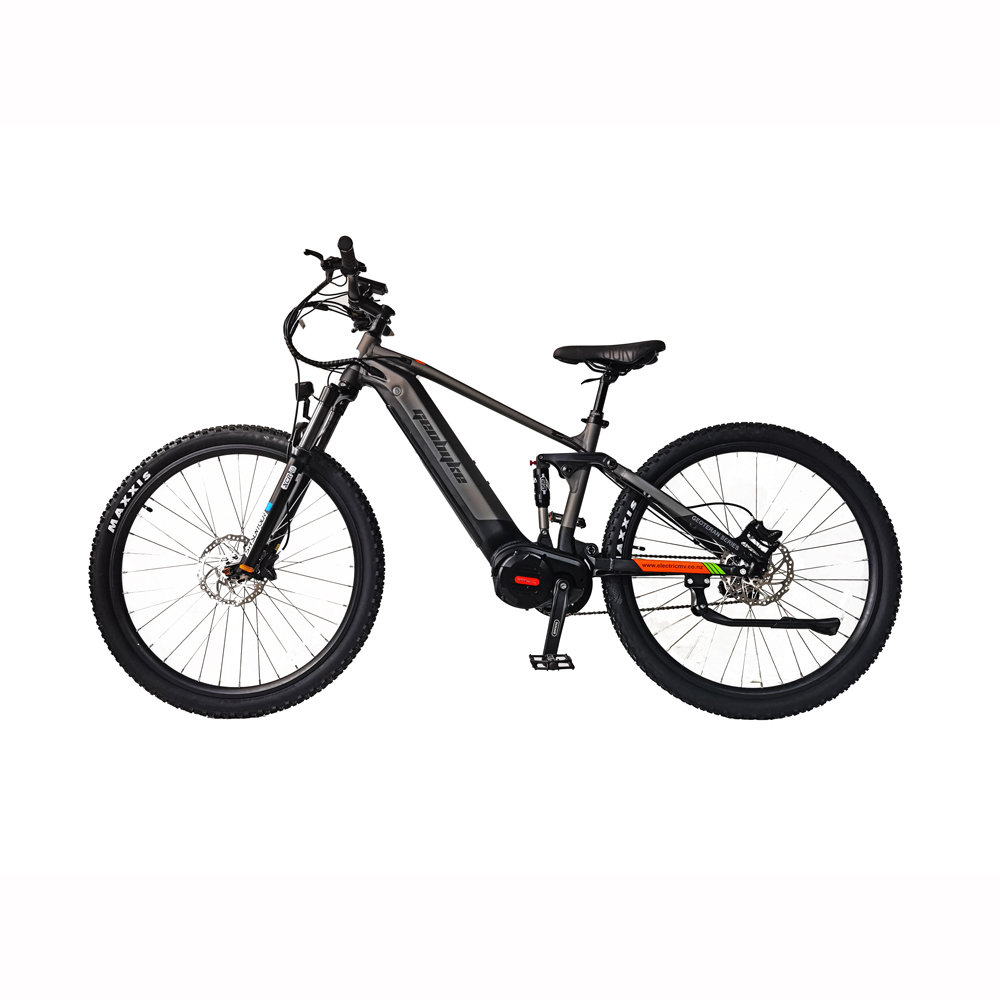

Introducing the Geobyke All-Trail Full Suspension Ebike
The Geobyke All-Trail Full Suspension e-bike helps riders conquer rough tracks and rail trails. It features an 840Wh battery, a 300W mid-drive motor, and 160 Nm of torque for strong range and power. Dual suspension absorbs bumps for a smooth, controlled ride. A tough frame handles harsh conditions with steady comfort. The throttle gets you moving instantly and flattens steep hills with ease. Zero effort, total control.
With a durable frame and sturdy components, the All-Trail Full Suspension e-bike is built to withstand tough conditions while offering a comfortable and stable ride, no matter the terrain. It’s the perfect choice for adventurous riders looking to push the limits.
You can now protect your Ebike with Follo, GPS Tracker.
Specifications
- Motor: Bafang 48V 300W Nominal Mid Drive Motor M620
- Battery: 840Wh 48V 17.5Ah LG
- 160NM of Torque
- Display: Large LCD Display
- Controller: Mid drive controller inside motor
- Charger: Sans 3A Charger
- Charging Time: 4–6 hours
- Frame: Aluminium Alloy 6061
- Fork: Suntour XCR 34-29 suspension, 120mm travel, with rear KS652 air suspension
- Max Speed: Up to 45 km/h, with throttle
- Range: 60–120 km
- Brakes: Tektro Hydraulic Brake, 4 pistons, with cut-off switch
- Derailleur: SRAM GX 10-speed
- Tyres: Maxxis Ardent 29 x 2.25
- Max Load: 130kg
- Lights: Front and rear LED lights
- Seat Post: Manual Dropper
- Colours: Satin Green, Gun Metal
Origin
Manufactured in China and assembled, tested, and supported by our team in Invercargill, New Zealand. Each GeoByke is locally quality-checked before delivery.
Servicing & Support
GeoByke offers full servicing and technical support from our Invercargill team. Whether you need a tune-up, battery service, or spare parts, our technicians are here to help keep your bike running smoothly.
Geobyke E-Bike Warranty
Every Geobyke e-bike is backed by a full warranty — because we believe in quality that lasts:
3 years – Frame
2 years – Battery, motor, and electronic components
1 year – General parts (e.g. brakes, drivetrain)
This warranty covers manufacturing defects under normal use and maintenance.
Note: Wear-and-tear items such as brake pads, chains, and tires are considered consumables and are not covered.
